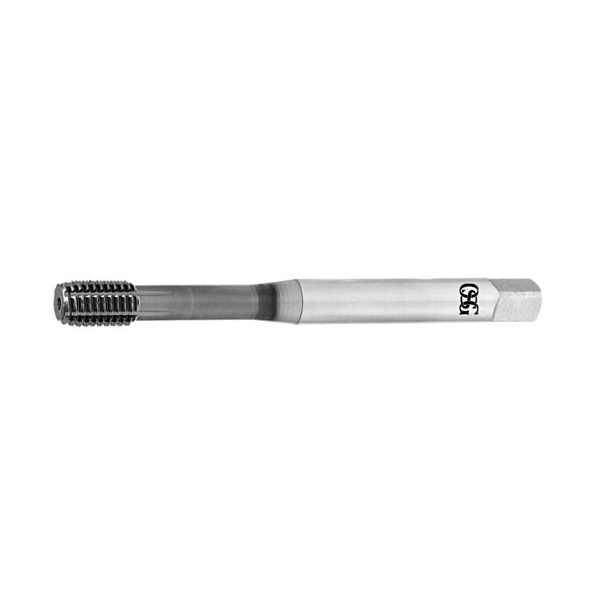

M2.3 x 0.4 S-XPF Thread Forming Tap TiCN Coated For General Use - OSG
OSG-48030128
S-XPF - M2.3 x 0.4
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
| Thread Type | M |
| Thread Diameter (TD) | 2.3mm |
| Pitch (TP) | 0.4mm |
| Functional Length (LF) | 45mm |
| Neck Length (LU) | 9mm |
| Shank Diameter (DCON) | 2.8mm |
| Drive Size (DRVS) | 2.1mm |
| Number of Flutes (NOF) | 4 |
| Pre-machined Hole Diameter (PHD) | 2.12 ~ 2.15 |
| Type | 1 |
| DIN | DIN 2174 |
