M2.2 x 0.45 S-XPF Thread Forming Tap TiCN Coated For General Use - OSG - Precision Engineering Tools EW Equipment OSG,
M2.2 x 0.45 S-XPF Thread Forming Tap TiCN Coated For General Use - OSG - Precision Engineering Tools EW Equipment OSG,

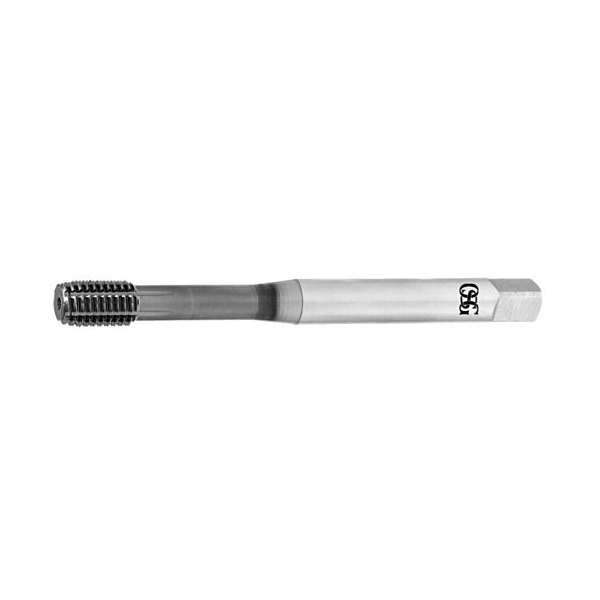

M2.2 x 0.45 S-XPF Thread Forming Tap TiCN Coated For General Use - OSG

OSG-48030127

OSG

S-XPF - M2.2 x 0.45

Product features and benefits:

  • First choice in quality and performance
  • HSSE forming tap for through and blind holes
  • Multilayer TiCN coating
  • For general steels, stainless steels, aluminium

Thread Type M
Thread Diameter (TD) 2.2mm
Pitch (TP) 0.45mm
Functional Length (LF) 45mm
Neck Length (LU) 9mm
Shank Diameter (DCON) 2.8mm
Drive Size (DRVS) 2.1mm
Number of Flutes (NOF) 4
Pre-machined Hole Diameter (PHD)  2.00 ~ 2.04
Type 1
DIN DIN 2174
OSG-48030127 M2.2 X 0.45 S-XPF THREAD FORMING TAP TICN COATED FOR GENERAL USE - OSG
