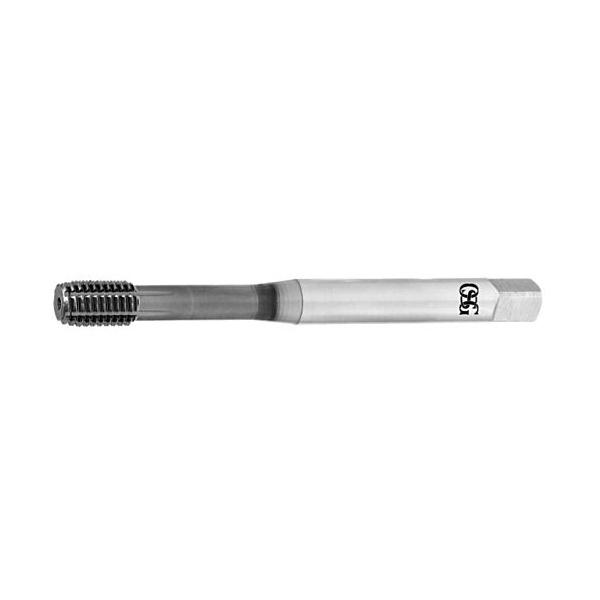

M1.8 x 0.35 S-XPF Thread Forming Tap TiCN Coated For General Use - OSG
OSG-48030120
S-XPF - M1.8 x 0.35
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
| Thread Type | M |
| Thread Diameter (TD) | 1.8mm |
| Pitch (TP) | 0.35mm |
| Functional Length (LF) | 40mm |
| Neck Length (LU) | 8mm |
| Shank Diameter (DCON) | 2.5mm |
| Drive Size (DRVS) | 2.1mm |
| Number of Flutes (NOF) | 4 |
| Pre-machined Hole Diameter (PHD) | 1.65 ~ 1.68 |
| Type | 1 |
| DIN | DIN 2174 |
