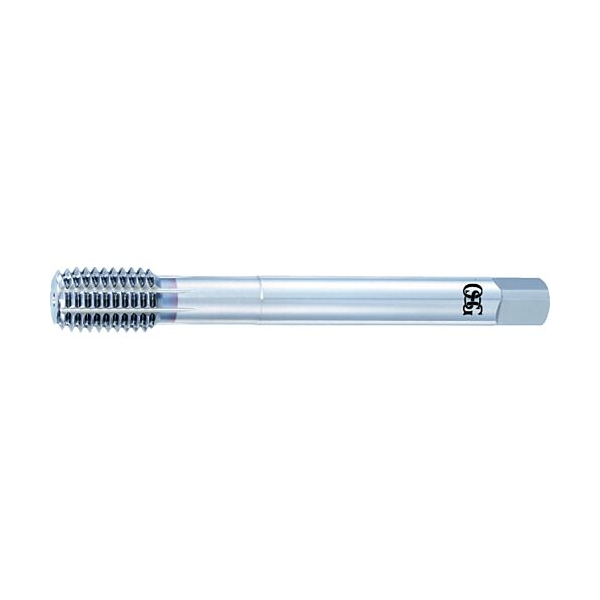

M18 x 1.5 S-XPF 6GX Metric Fine Thread Forming Tap TiCN Coated For General Use - OSG

OSG-48086216

OSG

  • £184.75


S-XPF 6GX - Metric Fine - M18 x 1.5

Product features and benefits:

  • First choice in quality and performance
  • HSSE forming tap for through and blind holes
  • Multilayer TiCN coating
  • For general steels, stainless steels, aluminium
  • For 6G internal thread tolerance

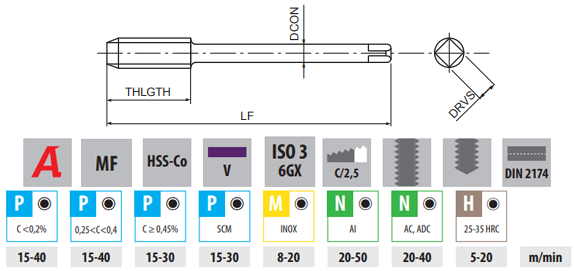

Thread Type MF
Thread Diameter (TD) 18mm
Pitch (TP) 1.5mm
Oversize 0.0320mm
Functional Length (LF) 110mm
Thread Length (THLGTH) 15mm
Shank Diameter (DCON) 14mm
Drive Size (DRVS) 11mm
Number of Flutes (NOF) 8
Pre-machined Hole Diameter (PHD)  17.27 ~ 17.36
DIN DIN 2174
