M12 x 1.25 S-XPF 6GX Metric Fine Thread Forming Tap TiCN Coated For General Use - OSG
OSG-48086181
S-XPF 6GX - Metric Fine - M12 x 1.25
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
- For 6G internal thread tolerance

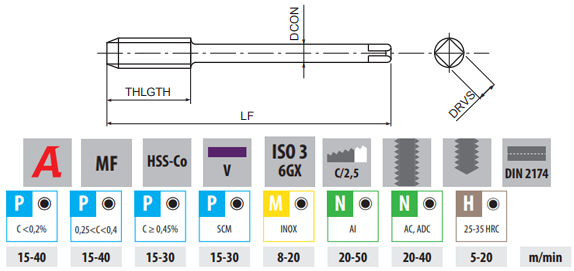

| Thread Type | MF |
| Thread Diameter (TD) | 12mm |
| Pitch (TP) | 1.25mm |
| Oversize | 0.0280mm |
| Functional Length (LF) | 100mm |
| Thread Length (THLGTH) | 15mm |
| Shank Diameter (DCON) | 9mm |
| Drive Size (DRVS) | 7mm |
| Number of Flutes (NOF) | 8 |
| Pre-machined Hole Diameter (PHD) | 11.41 ~ 11.49 |
| DIN | DIN 2174 |
