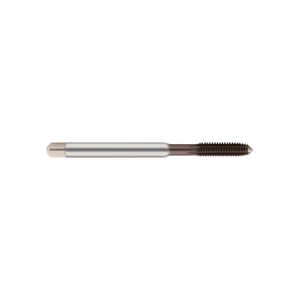

M3 x 0.5 Roll Tap TiAlN Coated HSS-E 6HX Cold Forming - Europa Tool TM38270300
TM38270300
TM3827 - Roll Tap
- Cold Forming tap with oil grooves.
- For materials with at least 10% elongation.
- TiAlN coated for increased tool life.
| Thread Diameter (TDZ) | M3 |
| Pitch (TP) | 0.5 |
| Thread Length (THL) | 11mm |
| Overall Length (LF) | 56mm |
| Neck Length (LU) | 18mm |
| Shank Diameter (DCON) | 3.5mm |
| Drive square size (DRVS) | 2.7mm |
| Pre-machined Hole Diameter/Drill Size (PHD) | 2.8 |
