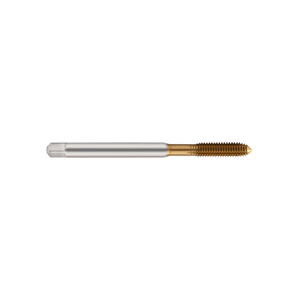

M10 x 1.5 Roll tap TiN coated HSS-E 6HX Cold Forming Europa tool TM38171000
TM38171000
TM3817 - Roll Tap
- Cold Forming tap with oil grooves.
- For materials with at least 10% elongation.
- TiN coated, a great all round coating for general use.
| Thread Diameter (TDZ) | M10 |
| Pitch (TP) | 1.5 |
| Thread Length (THL) | 22mm |
| Overall Length (LF) | 100mm |
| Neck Length (LU) | 39mm |
| Shank Diameter (DCON) | 10mm |
| Drive square size (DRVS) | 8mm |
| Pre-machined Hole Diameter/Drill Size (PHD) | 9.3 |
