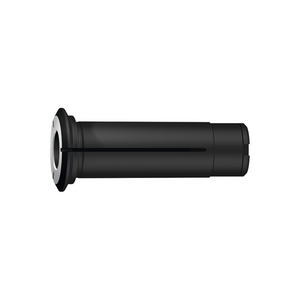

powRgrip® PGR 25-S 20mm Collet with Length Adjustment for Shanks Shorter than DIN 6535 - Emuge Franken
6863.2520
powRgrip® PGR 25-S - 20mm
PGR collet with length adjustment for PGR clamping system.
Product features and benefits:
- For tool shanks shorter than DIN 6535.
- Designed for internal coolant supply.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Collet Size | PGR 25 |
| Clamping Diameter (ØD2) | 20mm |
| Outside Diameter (Ød1) | 25mm |
| Overall Length (l1) | 63mm |
| Length (l2) | 6mm |
| Length min. - max. (l3) | 40-47.5mm |
