powRgrip® HSK-A63 Collet Chuck for PGR10 Collet - 80mm Gauge - Emuge Franken
6820.631008

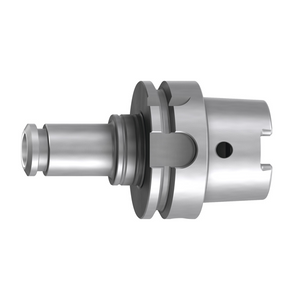

powRgrip® HSK-A63
Collet chuck, hollow taper shank (HSK-A) according to DIN ISO 69893-1, for PGR collets.
Product features and benefits:
- Designed for internal coolant supply.
- High precision operation due to fine balancing and concentricity deviation <= 3 µm.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Shank Type | HSK-A63 |
| Collet Size | PGR 10 |
| Clamping Diameter (ØD1) | 0.2-6mm |
| Diameter (ØD3) | 16mm |
| Outside Diameter (ØD) | 32.5mm |
| Usable Length (L3) | 54mm |
| Projecting Length (L1) | 80mm |
| Shank Norm | DIN 69893-1 |
| Concentricity | <=0.003mm |
| Imbalance | G2.5 (at 25000 rpm) |
