powRgrip® HSK-A100 Collet Chuck for PGR32 Collet - 200mm Gauge - Emuge Franken
6820.103220

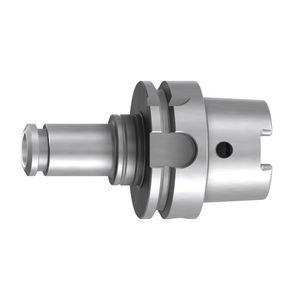

powRgrip® HSK-A100
Collet chuck, hollow taper shank (HSK-A) according to DIN ISO 69893-1, for PGR collets.
Product features and benefits:
- Designed for internal coolant supply.
- High precision operation due to fine balancing and concentricity deviation <= 3 µm.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Shank Type | HSK-A100 |
| Collet Size | PGR 32 |
| Clamping Diameter (ØD1) | 6-25mm |
| Diameter (ØD3) | 50mm |
| Outside Diameter (ØD) | 50.5mm |
| Usable Length (L3) | 171mm |
| Projecting Length (L1) | 200mm |
| Shank Norm | DIN 69893-1 |
| Concentricity | <=0.003mm |
| Imbalance | G2.5 (at 25000 rpm) |
