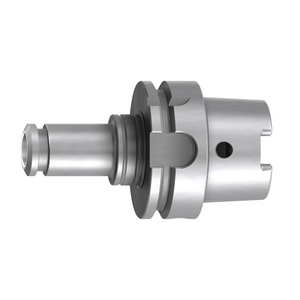

powRgrip® HSK-A100 Collet Chuck for PGR15 Collet - 160mm Gauge - Emuge Franken
6820.101516powRgrip® HSK-A100
Collet chuck, hollow taper shank (HSK-A) according to DIN ISO 69893-1, for PGR collets.
Product features and benefits:
- Designed for internal coolant supply.
- High precision operation due to fine balancing and concentricity deviation <= 3 µm.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
Shank Type | HSK-A100 |
Collet Size | PGR 15 |
Clamping Diameter (ØD1) | 3-10mm |
Diameter (ØD3) | 24mm |
Outside Diameter (ØD) | 40.5mm |
Usable Length (L3) | 131mm |
Projecting Length (L1) | 160mm |
Shank Norm | DIN 69893-1 |
Concentricity | <=0.003mm |
Imbalance | G2.5 (at 25000 rpm) |
