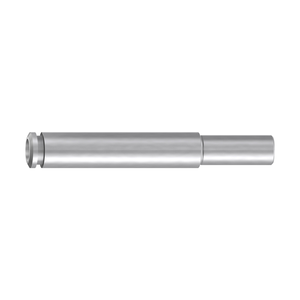

powRgrip® 20mm Collet Chuck Extension for PGR10 Collet - 170mm OAL - Emuge Franken
6840.201017
powRgrip® 20mm - A
Collet chuck extension for use with PGR collets.
Product features and benefits:
- Designed for internal coolant supply.
- Enables very high precision operation due to concentricity deviation <= 3µm.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Shank Type | 20mm / A |
| Collet Size | PGR 10 |
| Clamping Diameter (ØD2) | 0.2-6mm |
| Diameter (Ød1) | 16mm |
| Outside Diameter (Ød2) | 20mm |
| Overall Length (L1) | 170mm |
| Projecting Length (L2) | 120mm |
| Shank Norm | DIN 1835 |
| Concentricity | <=0.003mm |
