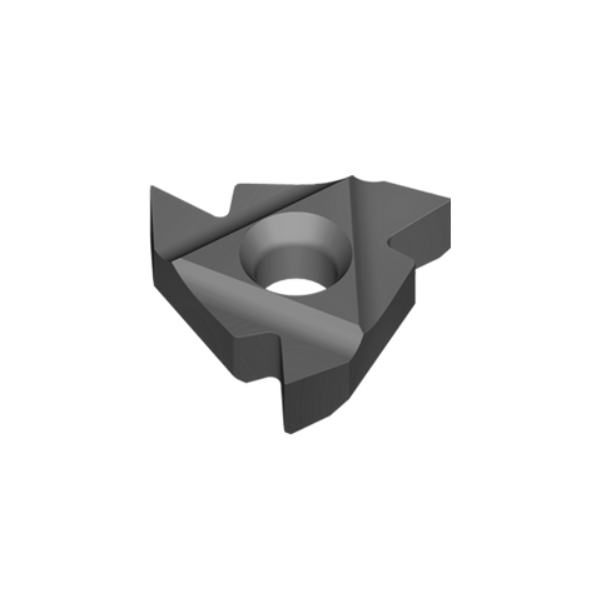

3ERA55VTX (0.5-1.5mm 48-16 TPI) External Partial Profile 55° RH Threading Insert VTX Grade - Vargus
021-54250
Partial Profile 55° - 3ERA55VTX - 16ERA55VTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*
| IC | 3/8" (16ER) |
|
L |
16mm |
| Pitch (mm) | 0.5-1.5mm |
| Pitch (TPI) | 48-16 |
| r | 0.05mm |
| X | 0.8mm |
| Y | 0.9mm |
| Tolerance | - |
| Anvil | YE3 |
| Toolholder | AL..-3 |
021-54250
