3/8 - 18 Tapered Thread Ring Gauge L1 NPTF - Go/No-Go - Emuge Franken
L0600500.5785
NPTF

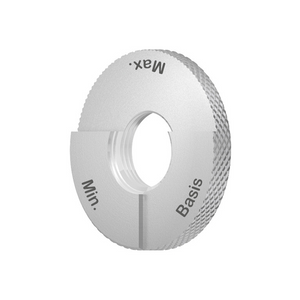

Go/no-go tapered thread ring gauge L1 for NPTF external thread.
Product features and benefits:
Three measuring stages (min., base, max.) for NPTF-1.
NPTF-2 on request (four measuring stages).
On request with customised marking and factory calibration certificate.
*Please note these are not available on a guaranteed next day delivery*
| Thread | NPTF |
| Diameter | 3/8 |
| Nominal Diameter | 16.93mm |
| Threads per inch (TPI) | 18 |
| Rotation | R/H |
| Gauge System | ASME B1.20.5 |
