1/16 - 27 Tapered Thread Ring Gauge L1 NPT - Go/No-Go - Emuge Franken
L0600500.5763
NPT

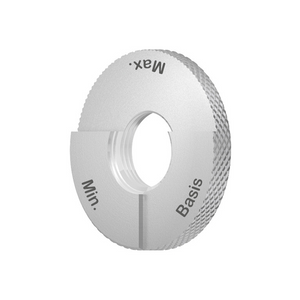

Go/no-go tapered thread ring gauge L1 for NPT external thread.
Product features and benefits:
Three measuring stages (min., base, max.) for NPT.
NPTF-2 on request (four measuring stages).
On request with customised marking and factory calibration certificate.
*Please note these are not available on a guaranteed next day delivery*
| Thread | NPT |
| Diameter | 1/16 |
| Nominal Diameter | 7.84mm |
| Threads per inch (TPI) | 27 |
| Rotation | R/H |
| Gauge System | ANSI/ASME B1.20.1 |
