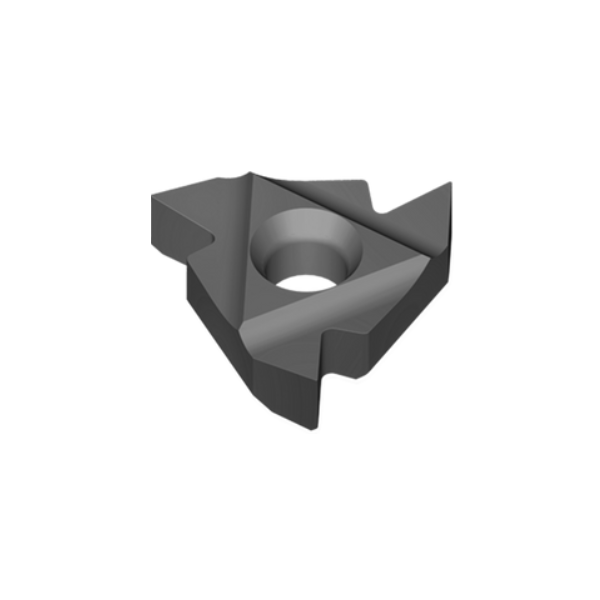

3IR8NPTVTX Internal NPT RH Threading Insert VTX Grade - Vargus
021-53814
NPT - 3IR8NPTVTX - 16IR8NPTVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*

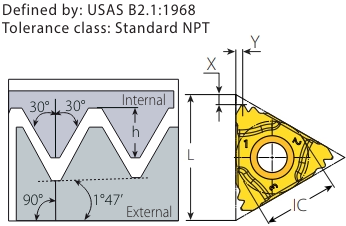

| IC | 3/8" (16IR) |
|
L |
16mm |
| Pitch (TPI) | 8 |
| h min | 2.42mm |
| X | 1.3mm |
| Y | 1.8mm |
| Tolerance | Standard NPT |
| Anvil | YI3 |
| Toolholder | AVR..-3 |
021-53814
