M100 x 2 Metric Fine Thread Plug Gauge - Go - Emuge Franken

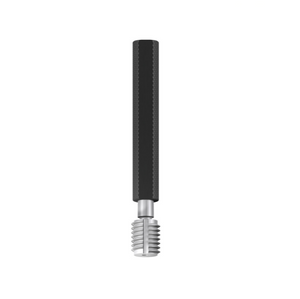

L0120100.0765Go thread plug gauge for gauging the internal thread.
Product features and benefits:
Very dimensionally stable due to aged gauge steel.
Hardness is clearly above the standardized minimum value.
With dirt groove (from Ø 5.5 mm) and removed incomplete threads for reliable gauging.
On request with coated go plug gauge body, customer-specific labelling and factory calibration certificate.
*Please note these may not available on a guaranteed next day delivery*
Thread |
Dia |
Pitch |
Tolerance |
Rotation |
Standard of Dimensions |
Gauge System |
MF |
100mm |
2mm |
6H |
R/H |
Din 2281 |
DIN ISO 1502 |
