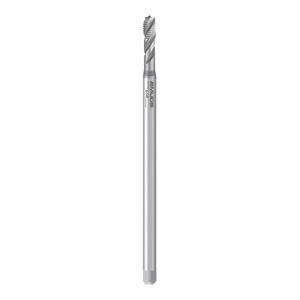

M6 x 1.0 Spiral Flute Long Series Tap Uncoated - Emuge Franken
B2503000.0060
M6-SF-VA-LS
HSSE tap for applications in many workpiece materials.
Product features and benefits:
- With extra-long shank for difficult-to-reach threads.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Thread | M |
| Diameter (d1) | 6mm |
| Pitch | 1.0mm |
| Coolant Supply | Without |
| Geometry | VA |
| Shank Diameter (d2) | 6mm |
| OAL (l1) | 160mm |
| Length of cutting edge (l2) | 10mm |
| Usable length (l3) | 30mm |
| Square ■ | 4.9mm |
| Tap hole diameter | 5mm |
