LK-M 10 BT Thread Plug Gauge go/no-go For SELF-LOCK Threads - Emuge Franken
L0100100.1056
LK-M EMUGE Standard

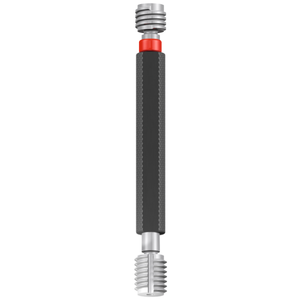

Go/no-go thread plug gauge for gauging the internal thread. Specifically for SELF-LOCK threads.
Product features and benefits:
Very dimensionally stable due to aged gauge steel.
Hardness is clearly above the standardized minimum value.
Go plug gauge with dirt groove (from Ø 5.5 mm) and removed incomplete threads for reliable gauging.
No-go plug gauge with insertion neck and free machining of thread core for precision work.
*Please note these are not available on a guaranteed next day delivery*
| Thread | LKM |
| Nominal Diameter (mm) | 10mm |
| Pitch (mm) |
1.5mm |
| Rotation | R/H |
| Standard | DIN2280 |
| Gauge System | EMUGE Standard |
