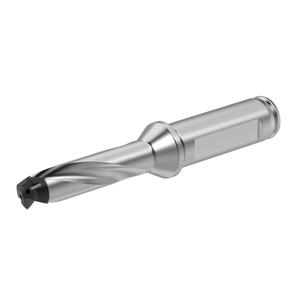

10.0mm KenTIP™ FS - Flanged Shank Body with Flat (Insert Seat J) - 3 x D - Kennametal
6372514
KenTIP™ FS
Metric - Flanged Shank - 3 x D
Features and Benefits:
- KenTIP FS Tool Holder with Flanged Cylindrical shank and 0° Flat. Metric Shank.
- KenTIP FS modular drills offer performance commonly achieved with solid carbide drills. The rigid pocket seat allows flexible usage and very high holder tool life.
- KenTIP FS drilling system uses disposable inserts — no reconditioning cost, consistent performance, and significantly reduced tool logistics compared to re-grindable drilling solutions.
- Multi-Coolant provides an advanced coolant channel layout with four coolant exits in each holder.
- Each Tool body is shipped with related insert wrench.
| Drill Diameter M (D1) | 10.0mm |
| Drill Diameter Maximum (D1MAX) | 10.499mm |
| Overall Length (L) | 104.0mm |
| Insert Gage Length (L1) | 56.0mm |
| Maximum Drilling Depth (L4) | 32.0mm |
| Shank Length (LS) | 48.0mm |
| Shank Diameter (D) | 16.0mm |
| Insert Seat Size (SSC) | J |
