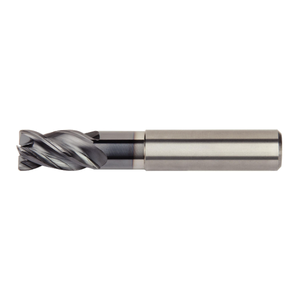

3.0mm 4 Flute Chamfered Necked HARVI™ 1 TE End Mill - Kennametal
6767961
HARVI™ 1 TE
Chamfered - 4 Flutes - Necked - Plain Shank - Metric
Features and Benefits:
- Proprietary end face design.
- Proprietary core design — Increasing tool stability.
- Innovative end face design.
- Proprietary relief — with AVF-Technology.
- Proprietary flute design.
| Cutting Diameter (D1) | 3.0mm |
| Shank (D) | 6.0mm |
| Neck Diameter (D3) | 2.82mm |
| 1st Maximum Cutting Depth (AP1MAX) | 8.0mm |
| Usable Length (L3) | 16.5mm |
| Overall Length (L) | 57.0mm |
| Corner Chamfer Width (BCH) | 0.1mm |
| Number of Flutes (Z) | 4 |
| Grade | KCPM15 |
