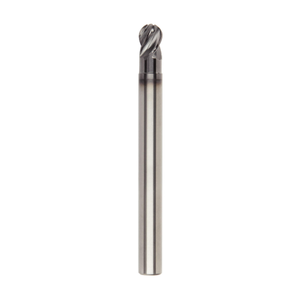

5.0mm 4 Flute Ball Nose Necked HARVI™ 1 TE End Mill - Kennametal
6768009
HARVI™ 1 TE
Ball Nose - 4 Flutes - Necked - Plain Shank - Metric
Features and Benefits:
- Proprietary end face design.
- Proprietary core design — Increasing tool stability.
- Innovative end face design.
- Proprietary relief — with AVF-Technology.
- Proprietary flute design.
| Cutting Diameter (D1) | 5.0mm |
| Shank (D) | 6.0mm |
| Neck Diameter (D3) | 4.7mm |
| 1st Maximum Cutting Depth (AP1MAX) | 5.0mm |
| Usable Length (L3) | 10.0mm |
| Overall Length (L) | 63.0mm |
| Number of Flutes (Z) | 4 |
| Grade | KCPM15 |
