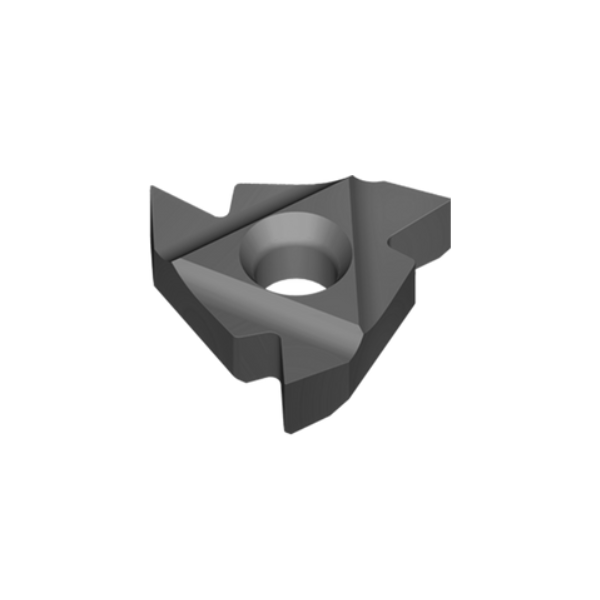

5ER6.0ISOVTX External ISO Metric RH Threading Insert VTX Grade - Vargus
021-59492
ISO Metric - 5ER6.0ISOVTX - 27ER6.0ISOVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

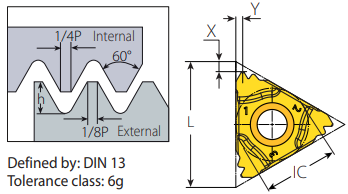

| IC | 5/8" (27ER) |
|
L |
27mm |
| Pitch (mm) | 6.0mm |
| h min | 3.68mm |
| X | 2.0mm |
| Y | 2.9mm |
| Tolerance | 6g |
| Anvil | YE5 |
| Toolholder | AL..-5 |
