4ER5.0ISOVTX External ISO Metric RH Threading Insert VTX Grade - Vargus
021-58583
ISO Metric - 4ER5.0ISOVTX - 22ER5.0ISOVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

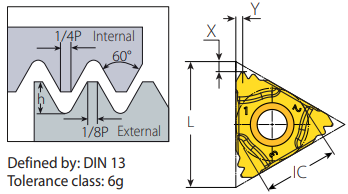

| IC | 1/2" (22ER) |
|
L |
22mm |
| Pitch (mm) | 5.0mm |
| h min | 3.07mm |
| X | 1.7mm |
| Y | 2.5mm |
| Tolerance | 6g |
| Anvil | YE4 |
| Toolholder | AL..-4 |
021-58583
4ER5.0ISOVTX EXTERNAL ISO METRIC RH THREADING INSERT VTX GRADE - VARGUS
