Softsynchro 4 - HSK-A100 (9mm - 22mm) For ER40 (GB) Collets - Emuge Franken
F3154C06.1

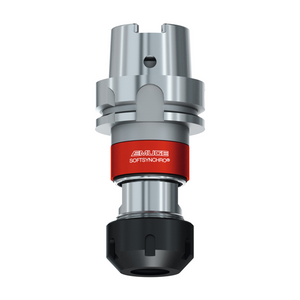

Softsynchro® 4 - HSK-A100 (For ER40 (GB) Collets)
Collet holder Softsynchro® for use with threading tools on machines with synchronised spindle.
Product features and benefits:
- For use with collets type ER or ER-GB.
- The minimum length compensation in push and pull direction compensates for minimum pitch differences between synchronous spindle and tool.
- The minimum length compensation prevents thread miscuts and improves tool life.
- Can be used up to 50 bar with internal coolant supply (ICS)
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
Type | Softsynchro® 4 |
Cutting Area (M) | M12-M30 |
D1 | 9mm - 22mm |
Collet Size | ER40 (GB) |
D2 | HSK-A100 |
D | 63mm |
D3 |
63mm |
L1 ER-GB | 138mm |
L2 | 50mm |
L4 | 5mm |
G | M24x1.5 |
C | 0.7mm |
T | 0.7mm |
