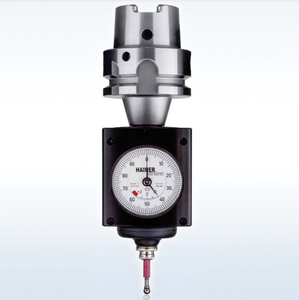

80.963.E40 Haimer 3D Zero Master Sensor / Tester With Integrated Short Adapter HSK-E40
80.963.E40
Due to new duty charges from the EU all Haimer sensors may not be available on a guaranteed next day delivery.
If you order is urgent, please contact the team and we can let you know the best we can do.
3D-Sensor Zero Master
Simple workpiece measuring with less space in the machine.
Version:
- With integrated short adapter in version HSK-E40
- No further manual runout adjustment necessary! Delivery with preset runout accuracy at the probe tip of 0.01 mm
- Measuring accuracy: 0.01 mm
- Short and long probe tips available, no tool change necessary
- No re-calibration of the sensor is needed
- Enhanced overrun distance
- IP 67 waterproof
Application:
- For small Milling and EDM machines (isolated probe)
- For workpiece-reset and length measuring
- Any direction approach (X-, Y-, Z-axis)
Please take note: The given measuring precision of 0.01 mm only applies if the original HAIMER probe tips are used.
Included in delivery: Zero Master with short probe tip Ø 4 mm
Technical data subject to change without prior notice.
Technical drawing
| Version | HSK-E40 |
| L [mm] | 131.6 |
| Accuracy [mm] |
0.01 |
| Order No. |
80.963.E40 |
