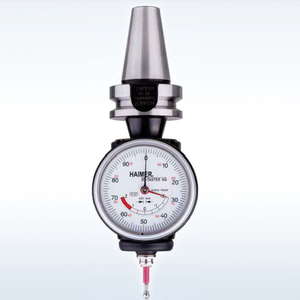

Simple workpiece measuring with less space in the machine.

Version:

• With integrated short adapter in version HSK-E25
• No further manual runout adjustment necessary! Delivery with preset runout accuracy at the probe tip of 0.01 mm
• Measuring accuracy: 0.01 mm
• Short and long probe tips available, no tool change necessary
• No re-calibration of the sensor is needed
• Enhanced overrun distance
• IP 67 waterproof

Application:

• For small Milling and EDM machines (isolated probe)
• For workpiece-reset and length measuring
• Any direction approach (X-, Y-, Z-axis)

Please take note: The given measuring precision of 0.01 mm only applies, if the original HAIMER probe tips are used.

Included in delivery: 3D-Sensor New Generation with clamping shank Ø 12 mm, short probe tip Ø 4 mm

Technical data subject to change without prior notice.
