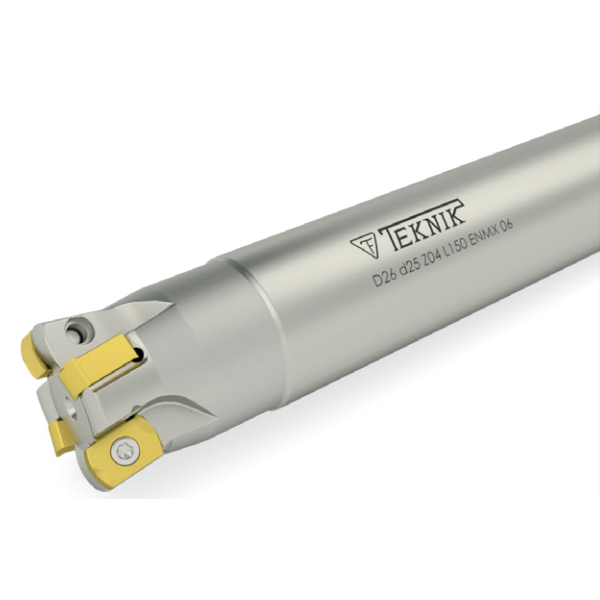

16mm ENMX 0604 - 2 Flute High Feed Indexable End Mill 100mm OAL - S105
S105

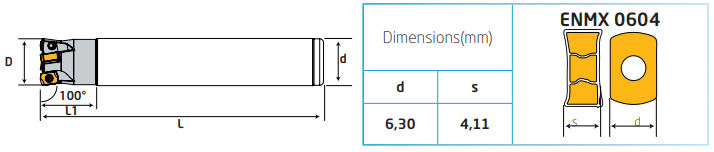

ENMX 0604 - 16mm - 2 Flute - 100mm OAL
| D | 16mm |
| Z | 2 |
| L | 100mm |
| d | 16mm |
| L1 | 30mm |
| Insert | ENMX 0604 YG1 |
| Clamp Screw | TC063 M2.5 x 7 |
| Torx Key | T8 |
| D | 16mm |
| Z | 2 |
| L | 100mm |
| d | 16mm |
| L1 | 30mm |
| Insert | ENMX 0604 YG1 |
| Clamp Screw | TC063 M2.5 x 7 |
| Torx Key | T8 |
