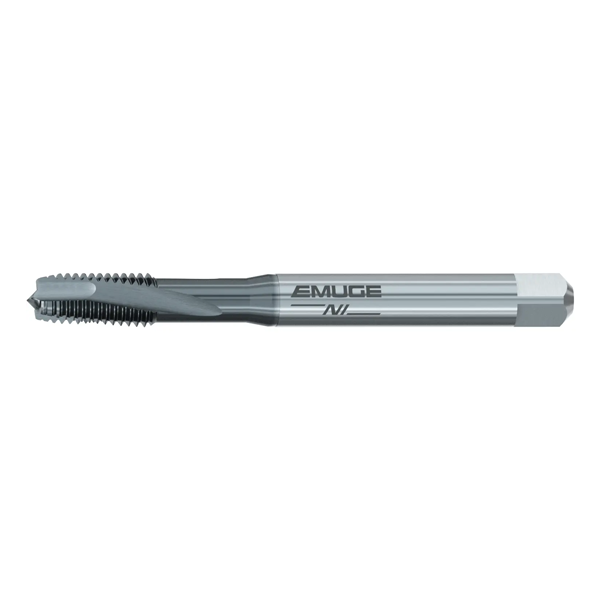

3/8 - 24 UNJF - Emuge Spiral Flute 3BX Tolerance NI HSSE-PM Tap TICN Coated

B438J411.5513

Emuge

  • £148.01


3/8-24 UNJF - SF - NI - PM - TICN

HSSE-PM taps for applications in nickel, cobalt, iron and titanium alloys.

TICN coating.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Similar DIN 371
  • Chamfer Form C
  • Additional chip divider "F" (clearance grinding) for narrow rolled or small broken chips.
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread UNJF
Nominal Size 3/8
Threads per inch (TPI) 24
Coolant Supply Without
Geometry NI

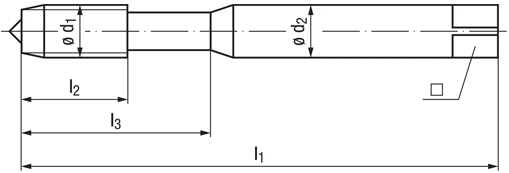

Shank Diameter (d2) 10mm
OAL (l1) 90mm
Length of cutting edge (l2) 18mm
Usable Length (l3) 35mm
Square  8mm
Tap hole diameter 8.6mm
B438J411.5513
