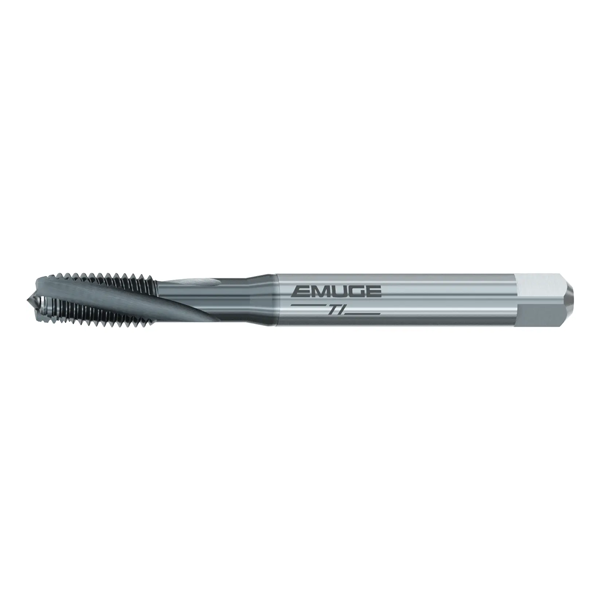

Nr.10 - 24 UNJC - Emuge Spiral Flute 3BX Tolerance TI Tap TICN Coated
B0459611.5483
Nr.10-24 UNJC - SF - TI - TICN
HSSE taps for applications in titanium.
TICN coating
Product features and benefits:
- Tap for blind hole threads in long-chipping material.
- Similar DIN 371
- Chamfer Form C
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Thread | UNJC |
| Nominal Size | #10 |
| Threads per inch (TPI) | 24 |
| Coolant Supply | Without |
| Geometry | TI |

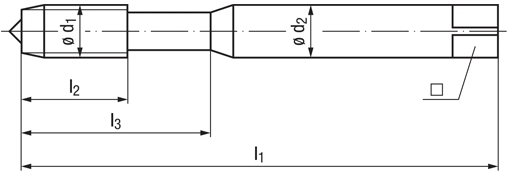

| Shank Diameter (d2) | 6mm |
| OAL (l1) | 70mm |
| Length of cutting edge (l2) | 15mm |
| Usable Length (l3) | 25mm |
| Square ■ | 4.9mm |
| Tap hole diameter | 3.9mm |
