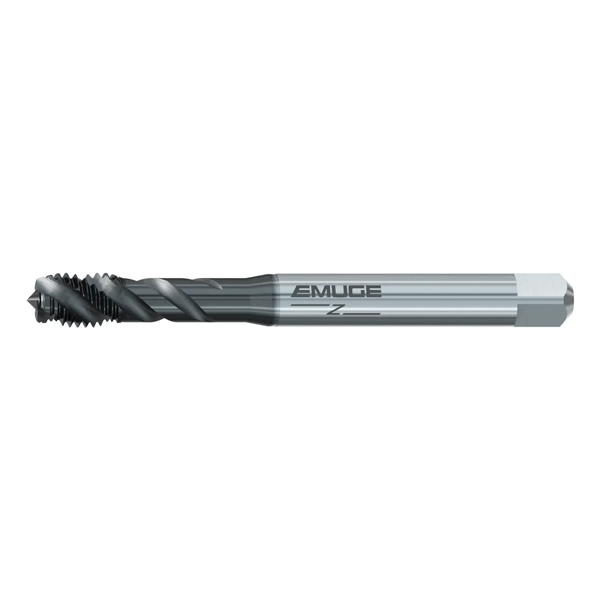

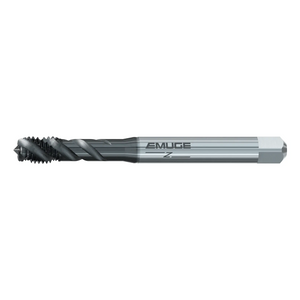

Nr.10 - 24 UNJC - Emuge Spiral Flute 3B Tolerance Z (General Use) Tap GLT-1 Coated
B050C410.5483Nr.10-24 UNJC - SF - Z - GLT-1
HSSE-tap for universal application in almost all materials.
GLT-1 coating - Hard surface coating with anti-friction layer. In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized. The combination of a hard surface coating (approx. 3,000 HV) with an anti-friction layer provides maximum tool life. Chip flow is also improved.
Product features and benefits:
- Designed for use in CNC-controlled machines.
- Tap for blind hole threads in long-chipping material.
- Similar DIN 371
- Chamfer Form C
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
Thread | UNJC |
Nominal Size | #10 |
Threads per inch (TPI) | 24 |
Coolant Supply | Without |
Geometry | Z |

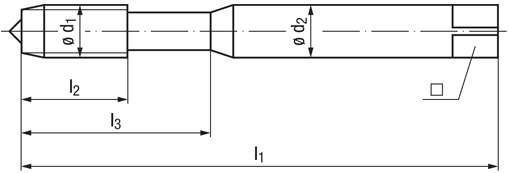

Shank Diameter (d2) | 6mm |
OAL (l1) | 70mm |
Length of cutting edge (l2) | 10mm |
Usable Length (l3) | 25mm |
Square ■ | 4.9mm |
Tap hole diameter | 3.9mm |
