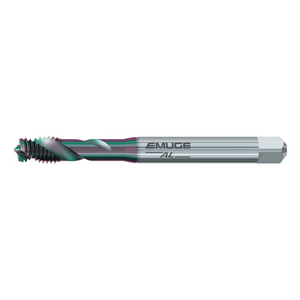

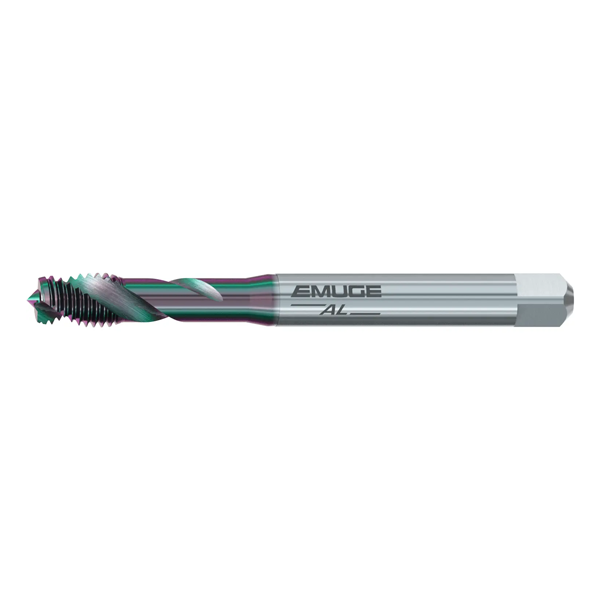

3/8 - 16 UNJC - Emuge Spiral Flute 3B Tolerance AL Tap GLT-104 Coated

B0503G10.5487

Emuge

  • £110.96


3/8-16 UNJC - SF - AL - GLT-104

HSSE tap for applications in wrought aluminium and copper materials.

GLT-104 coating - Special coating for even higher surface quality with reduced material adhesion.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Similar DIN 371
  • Chamfer Form C
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread UNJC
Nominal Size 3/8
Threads per inch (TPI) 16
Coolant Supply Without
Geometry AL

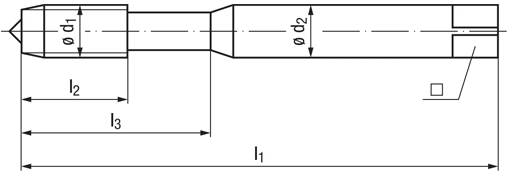

Shank Diameter (d2) 10mm
OAL (l1) 100mm
Length of cutting edge (l2) 16mm
Usable Length (l3) 39mm
Square  8mm
Tap hole diameter 8.1mm
B0503G10.5487
3/8 - 16 UNJC - EMUGE SPIRAL FLUTE 3B TOLERANCE AL TAP GLT-104 COATED
