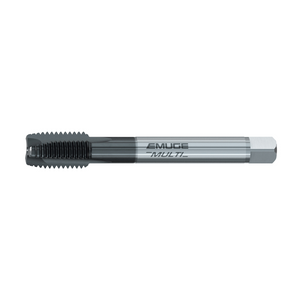

7/16 UNC - Emuge Spiral Point Multi Tap GLT Coated
C520C300.50127/16-UNC-SP-MULTI-GLT
HSSE tap for universal application in almost all workpiece materials.
GLT-1 coating - Hard surface coating with anti-friction layer. In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized. The combination of a hard surface coating (approx. 3,000 HV) with an anti-friction layer provides maximum tool life. Chip flow is also improved.
Product features and benefits:
- Tap for through hole threads in long-chipping material.
- The spiral point ensures optimum chip removal in the feed direction.
- Do not use this tap type for a reverse cut!
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
Thread | UNC |
Nominal Size |
7/16 |
Threads Per Inch (TPI) | 14 |
Coolant Supply | Without |
Geometry | MULTI |
Shank Diameter (d2) | 8mm |
OAL (l1) | 100mm |
Length of cutting edge (l2) | 22mm |
Square ■ | 6.2mm |
Tap hole diameter | 9.4mm |
