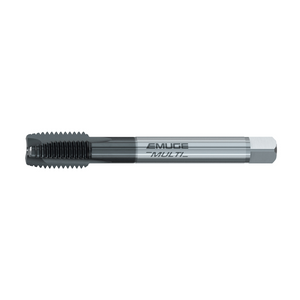

3/4 UNC - Emuge Spiral Point Multi Tap GLT Coated

C520C300.5016

Emuge

  • £141.07


3/4-UNC-SP-MULTI-GLT

HSSE tap for universal application in almost all workpiece materials.

GLT-1 coating - Hard surface coating with anti-friction layer. In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized. The combination of a hard surface coating (approx. 3,000 HV) with an anti-friction layer provides maximum tool life. Chip flow is also improved.

Product features and benefits:

  • Tap for through hole threads in long-chipping material.
  • The spiral point ensures optimum chip removal in the feed direction.
  • Do not use this tap type for a reverse cut!
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread UNC
Nominal Size
3/4
Threads Per Inch (TPI) 10
Coolant Supply Without
Geometry MULTI
Shank Diameter (d2) 14mm
OAL (l1) 125mm
Length of cutting edge (l2) 30mm
Square  11mm
Tap hole diameter 16.5mm
C520C300.5016 3/4 UNC - EMUGE SPIRAL POINT MULTI TAP GLT COATED
