5/8 UNC - Emuge Spiral Flute Multi Tap GLT Coated - Precision Engineering Tools EW Equipment Emuge,

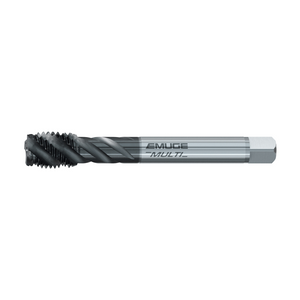

5/8 UNC - Emuge Spiral Flute Multi Tap GLT Coated

C550C400.5015

Emuge

  • £90.93


5/8-UNC-SF-MULTI-GLT

HSSE tap for universal application in almost all workpiece materials.

GLT-1 coating - Hard surface coating with anti-friction layer. In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized. The combination of a hard surface coating (approx. 3,000 HV) with an anti-friction layer provides maximum tool life. Chip flow is also improved.

Product features and benefits:

  • Tap for blind hole threads in long-chipping material.
  • Not to be recommended for threads beginning with an increased diameter.
  • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

Thread UNC
Nominal Size
5/8
Threads Per Inch (TPI) 11
Coolant Supply Without
Geometry MULTI
Shank Diameter (d2) 12mm
OAL (l1) 110mm
Length of cutting edge (l2) 22mm
Square  9mm
Tap hole diameter 13.5mm
C550C400.5015 5/8 UNC - EMUGE SPIRAL FLUTE MULTI TAP GLT COATED
