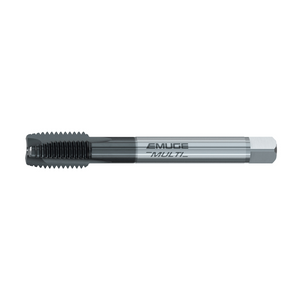

M18 x 2.5 Emuge Spiral Point Multi Tap GLT-1 Coated (High Performance)
C520C300.0180![](https://cdn.shopify.com/s/files/1/2314/3275/files/Emuge_Logo_7aabdca0-d9a9-4819-8d7f-8ac274fa81a3_480x480.png?v=1652698910)
M18-SP-MULTI-GLT
HSSE tap for universal application in almost all workpiece materials.
GLT-1 coating - Hard surface coating with anti-friction layer. In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized. The combination of a hard surface coating (approx. 3,000 HV) with an anti-friction layer provides maximum tool life. Chip flow is also improved.
Product features and benefits:
- Tap for through hole threads in long-chipping material.
- The spiral point ensures optimum chip removal in the feed direction.
- Do not use this tap type for a reverse cut!
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
Thread | M |
Diameter (d1) | 18mm |
Pitch | 2.5mm |
Coolant Supply | Without |
Geometry | MULTI |
Shank Diameter (d2) | 14mm |
OAL (l1) | 125mm |
Length of cutting edge (l2) | 30mm |
Square ■ | 11mm |
Tap hole diameter | 15.5mm |
