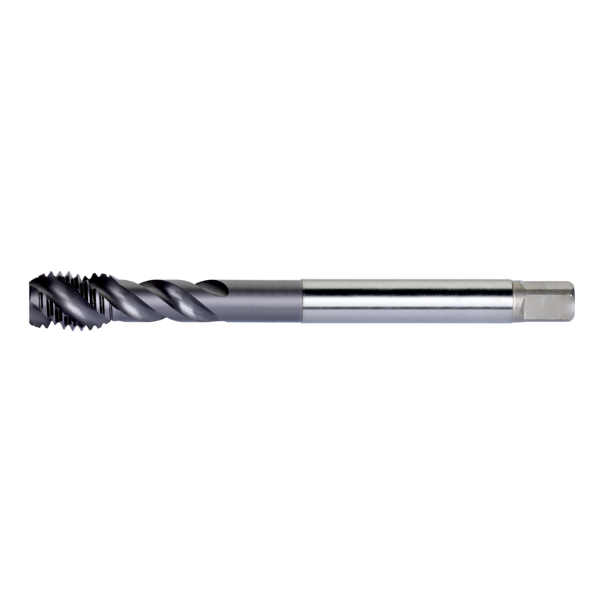

E398 - M20 x 2.5mm Dormer HSS-E-PM Spiral Flute Metric Tap - TiCN Coated
E398M20
E398
Thread size M20 mm x 2.5 mm, with thread tolerance class 93707, and maximum threading depth 50 mm. Unique Powder Metallurgy HSS-E PM substrate provides excellent combination of toughness and edge hardness.
| Thread Diameter (TDZ) | M20 |
| Pitch (TP) | 2.50mm |
| Overall Length (OAL) | 140.0mm |
| Thread Length (THL) | 25.0mm |
| Shank Diameter (DCON MS) | 16.00mm |
| Square Diameter (WSC) | 12.00mm |
| Square Length (LSC) | 15.0mm |
| Number Of Flutes | 4 |
| Premachined Hole Diameter (PHD) | 17.50mm |
| Usable Length (LU) | - |
