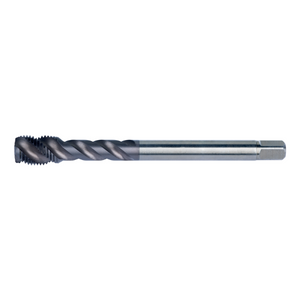

E398 - M8 x 1mm Dormer HSS-E-PM Spiral Flute Metric Fine Tap - TiCN Coated
E398M8X1.0
E398
Thread size MF8 mm x 1 mm, with thread tolerance class 93707, and maximum threading depth 20 mm. Unique Powder Metallurgy HSS-E PM substrate provides excellent combination of toughness and edge hardness.

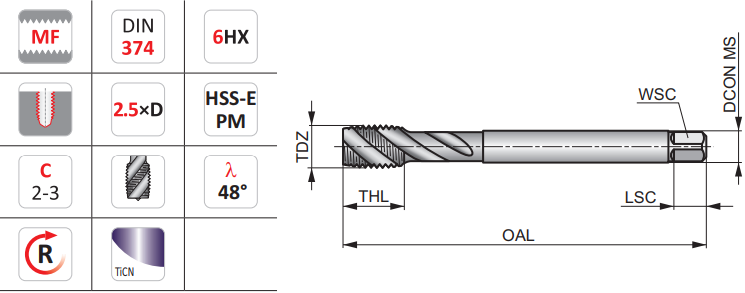

| Thread Diameter (TDZ) | M8 |
| Pitch (TP) | 1.00mm |
| Overall Length (OAL) | 90.0mm |
| Thread Length (THL) | 13.0mm |
| Shank Diameter (DCON MS) | 6.00mm |
| Square Diameter (WSC) | 4.90mm |
| Square Length (LSC) | 8.0mm |
| Number Of Flutes | 3 |
| Premachined Hole Diameter (PHD) | 7.00mm |
E398M8X1.0 E398 - M8 X 1MM DORMER HSS-E-PM SPIRAL FLUTE METRIC FINE TAP - TICN COATED
