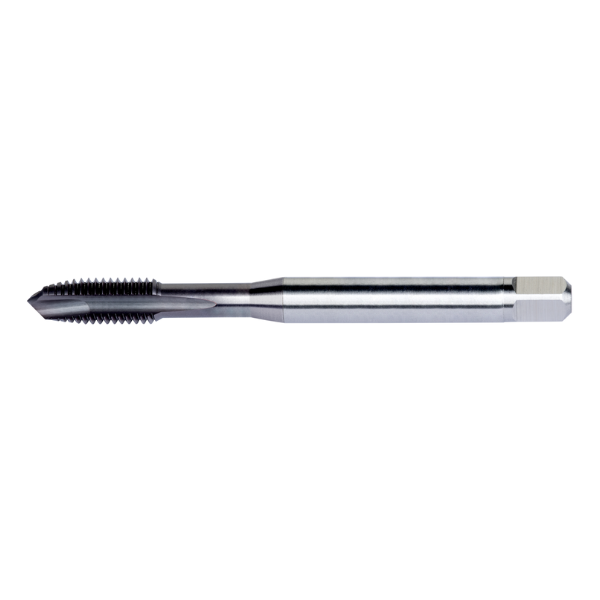

E397 - M8 x 1.25mm Dormer HSS-E-PM Spiral Point Metric Tap - TiCN Coated
E397M8
E397
Thread size M8 mm x 1.25 mm, with thread tolerance class 93707, and maximum threading depth 20 mm. Unique Powder Metallurgy HSS-E PM substrate provides excellent combination of toughness and edge hardness.
| Thread Diameter (TDZ) | M8 |
| Pitch (TP) | 1.25mm |
| Overall Length (OAL) | 90.0mm |
| Thread Length (THL) | 18.0mm |
| Shank Diameter (DCON MS) | 8.00mm |
| Square Diameter (WSC) | 6.20mm |
| Square Length (LSC) | 9.0mm |
| Number Of Flutes | 3 |
| Premachined Hole Diameter (PHD) | 6.80mm |
| Usable Length (LU) | 35.00mm |
E397M8 E397 - M8 X 1.25MM DORMER HSS-E-PM SPIRAL POINT METRIC TAP - TICN COATED
