DNMG 150608E-FM T7325 Carbide Turning Inserts (For Stainless Steel) - Dormer Pramet
DNMG 150608E-FM T7325
Dormer Pramet Carbide Turning Inserts.

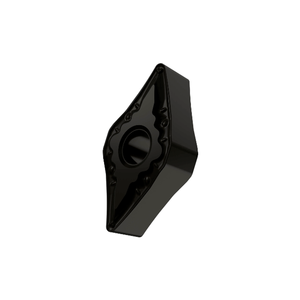

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 12.7mm, 6.35mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide, for fine to medium machining
This price is for a box of 10 inserts.
| Insert Style |
DNMG |
| Insert Size |
150608E |
| Grade |
T7325 |
| Chip Breaker Type |
FM |
| Corner Radius (RE) | 0.8mm |
| Height (IC) |
12.7mm |
| Hole Diameter (D1) | 5.16mm |
| Cutting Edge Length (L) | 15.5mm |
| Insert Thickness (S) | 6.35mm |
| Cutting Edge Material | Carbide |
