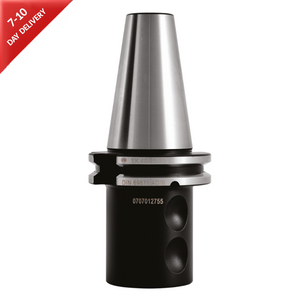

DIN 69871 SK40 - 20mm U-Drill Holder for drills with indexable inserts form E1 ER-Plus Dual Contact/Face & Taper - 65mm Gauge (AD/B) - Eroglu
403.51.20.65.ERP
DIN 69871 - SK40 - AD/B - E1 - 20mm - ER-PLUS - 65mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.
| Description | SK40 ERP |

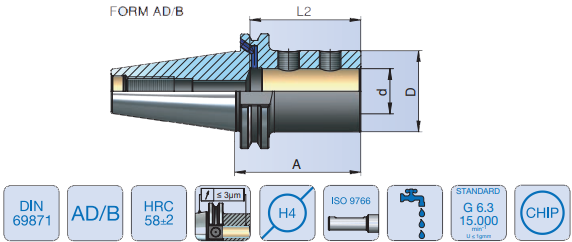

| Form | AD/B |
| d | 20mm |
| A (Gauge) | 65mm |
| D | 40mm |
| L2 | 56mm |
