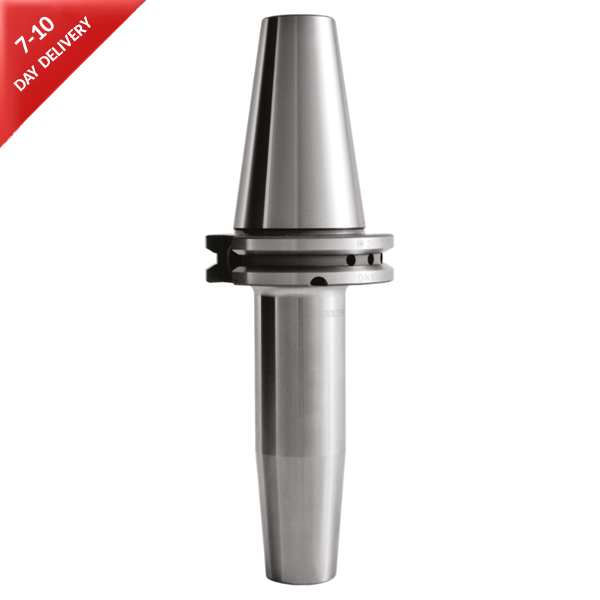

DIN 69871 SK50 - 4mm Shrink Chuck ER-Plus Dual Contact/Face & Taper - 80mm Gauge (AD/B) - Eroglu
503.25.04.80.ERP
DIN 69871 - SK50 - AD/B - 4mm - ER-PLUS - 80mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

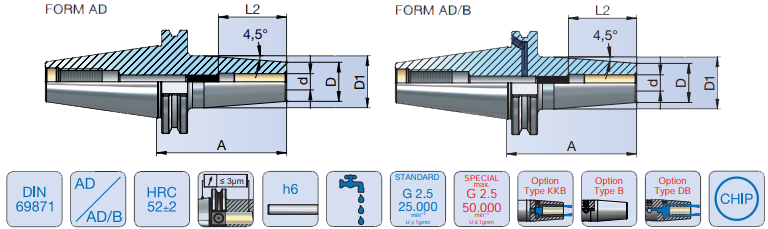

| Description | SK50 ERP |
| Form | AD/B |
| d | 4mm |
| A (Gauge) | 80mm |
| D | 12mm |
| D1 | 20mm |
| L2 | 17mm |
