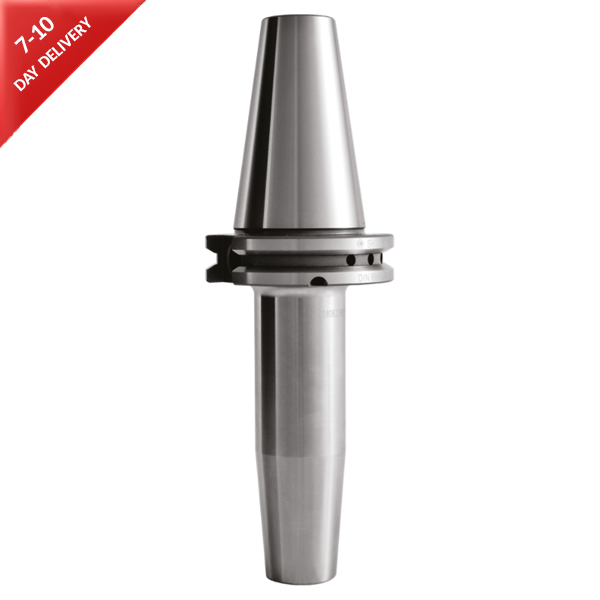

DIN 69871 SK50 - 25mm Shrink Chuck ER-Plus Dual Contact/Face & Taper - 100mm Gauge (AD/B) - Eroglu
503.25.25.100.ERP
DIN 69871 - SK50 - AD/B - 25mm - ER-PLUS - 100mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

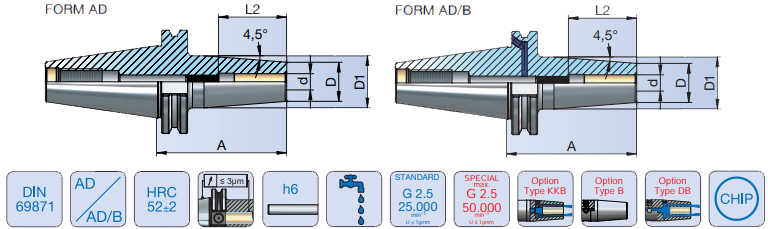

| Description | SK50 ERP |
| Form | AD/B |
| d | 25mm |
| A (Gauge) | 100mm |
| D | 44mm |
| D1 | 53mm |
| L2 | 58mm |
