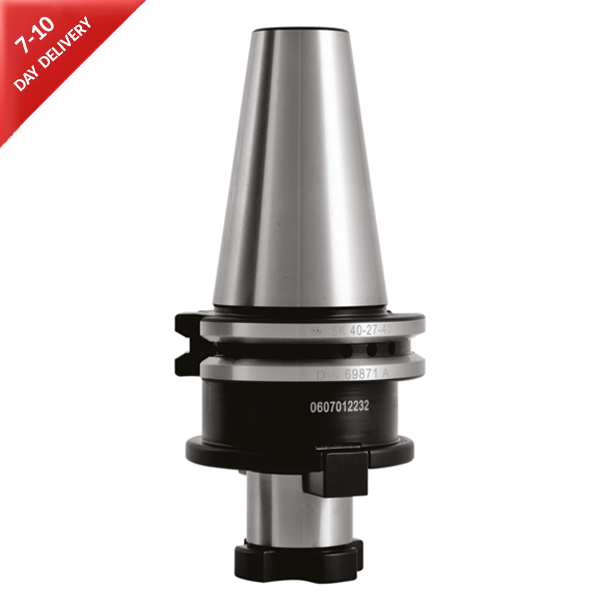

DIN 69871 SK40 - 32mm Shell Mill Holder ER-Plus Dual Contact/Face & Taper - 160mm Gauge (AD/B) - Eroglu
403.11.32.160.ERP
DIN 69871 - SK40 - AD/B - 32mm - ER-PLUS - 160mm Gauge

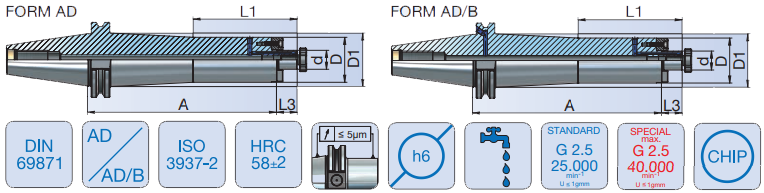

The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.
| Description | SK40 ERP |
| Form | AD/B |
| d | 32mm |
| A (Gauge) | 160mm |
| D | 78mm |
| L3 | 24mm |
