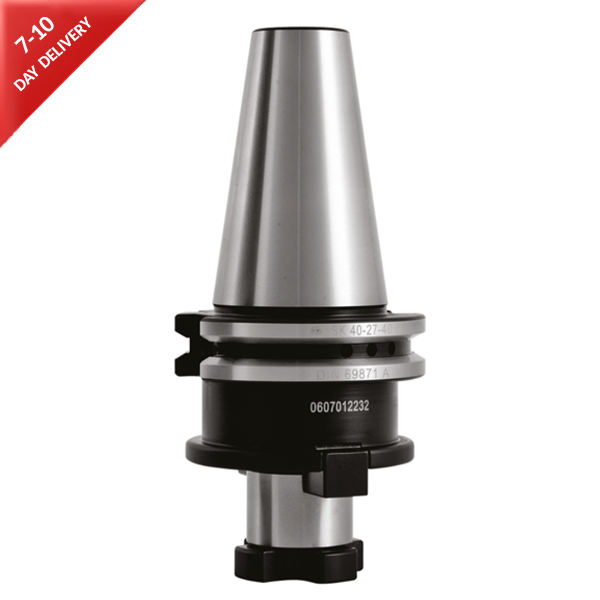

DIN 69871 SK30 - 22mm Shell Mill Holder ER-Plus Dual Contact/Face & Taper - 40mm Gauge (AD) - Eroglu
302.11.22.40.ERP
DIN 69871 - SK30 - AD - 22mm - ER-PLUS - 40mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

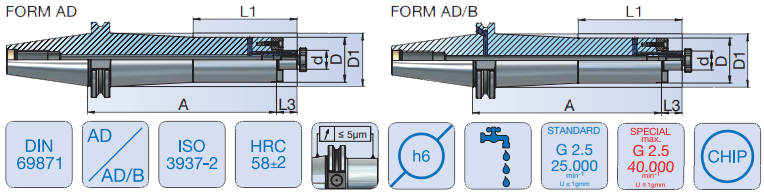

| Description | SK30 ERP |
| Form | AD |
| d | 22mm |
| A (Gauge) | 40mm |
| D | 45mm |
| L3 | 19mm |
