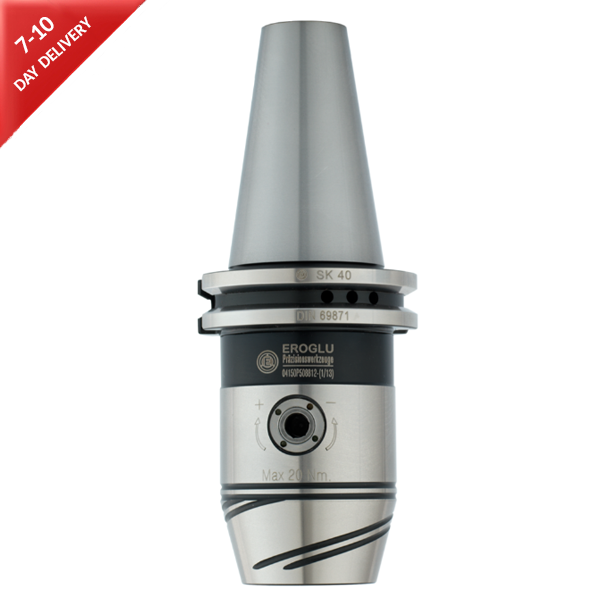

DIN 69871 SK40 - 3-16mm NC-Drill chuck for right and left rotation ER-Plus Dual Contact/Face & Taper - 95mm Gauge (AD/B) - Eroglu
403.15.16.95.IK.ERP
DIN 69871 - SK40 - AD/B - 3-16mm - ER-PLUS - 95mm Gauge

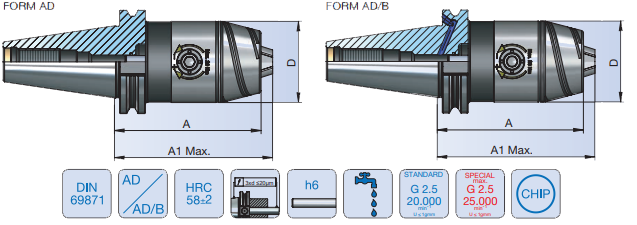

The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.
| Description | SK40 ERP |
| Form | AD/B |
| Capacity | 3-16mm |
| A (Gauge) | 95mm |
| D | 57mm |
| A1 Max. | 100mm |
