DIN 69871 SK40 - ER32 Collet Chuck ER-Plus Dual Contact/Face & Taper - 70mm Gauge (AD/B) - Eroglu
403.02.20.70.ERP
DIN 69871 - SK40 - AD/B - ER32 - ER-PLUS - 70mm Gauge

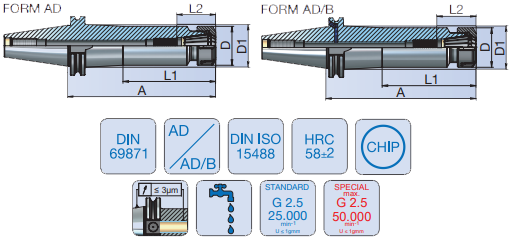

The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery so please contact us for more info on lead time/stock.
| Description | SK40 ERP |
| Form | AD/B |
| Capacity | ER32 (2-20) |
| A (Gauge) | 70mm |
| D | 50mm |
| L2 | 48mm |
