DIN 69871 SK30 - ER25 Collet Chuck ER-Plus Dual Contact/Face & Taper - 70mm Gauge (AD) - Eroglu
302.02.16.70.ERP
DIN 69871 - SK30 - AD - ER25 - ER-PLUS - 70mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery so please contact us for more info on lead time/stock.

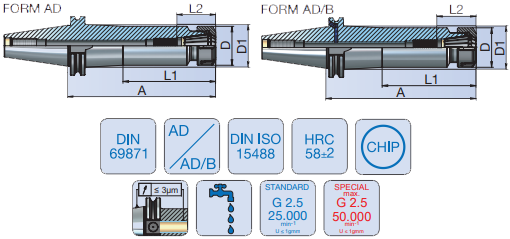

| Description | SK30 ERP |
| Form | AD |
| Capacity | ER25 (2-16) |
| A (Gauge) | 70mm |
| D | 42mm |
| L2 | 42mm |
