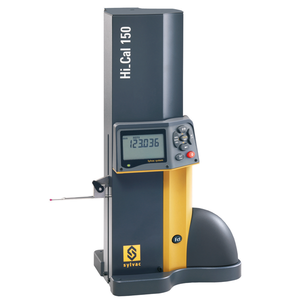

150mm Hi_Cal Digital Motorised Height Gauge (Bluetooth Enabled) - Sylvac
30-830-0156
Hi_Cal 150 - (30-830-0156) - Bluetooth Enabled
The Sylvac Hi_Cal Digital Motorised Height Gauge is perfect for a variety of measuring tasks including step heights, internal/external diameters and centre-line distances.
The height gauge benefits from Sylvac's patented inductive measuring electronics and the latest motorised probing system, to give excellent repeatability and ease of use.
Features and Benefits:
- Available in three models: 150mm, 300mm and 450mm
- Motorised carriage with 2 progressive speed ranges
- Light and compact with a small footprint
- Simultaneous display of diameter and centerline
- Measures internal and external diameter, centerline, height, thickness and depth
- Extremely low measuring force
- USB data output or RS232
- Supplied with setting master and standard probe
| Range | 150mm |
| Application Range | 0-155mm |
| Accuracy | 2.5 + L/175 |
| Repeatability | 2μm |
| Resolution | 0.01/0.001mm |
| Height | 379mm |
| Weight | 3.9kg |
