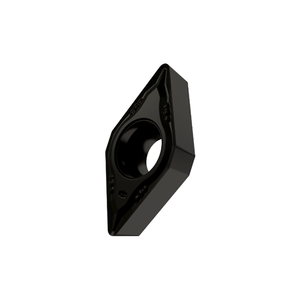

DCMT 150408E-RM T9325 Carbide Turning Inserts (For General Use / Steel) - Dormer Pramet
DCMT 150408E-RM T9325
Dormer Pramet Carbide Turning Inserts.
Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for fine to heavy machining of steels and stainless-steels
This price is for a box of 10 inserts.
| Insert Style |
DCMT |
| Insert Size |
150408E |
| Grade |
T9325 |
| Chip Breaker Type |
RM |
| Corner Radius (RE) | 0.8mm |
| Height (IC) |
12.7mm |
| Hole Diameter (D1) | 5.5mm |
| Cutting Edge Length (L) | 15.50mm |
| Insert Thickness (S) | 4.76mm |
| Cutting Edge Material | Carbide |
